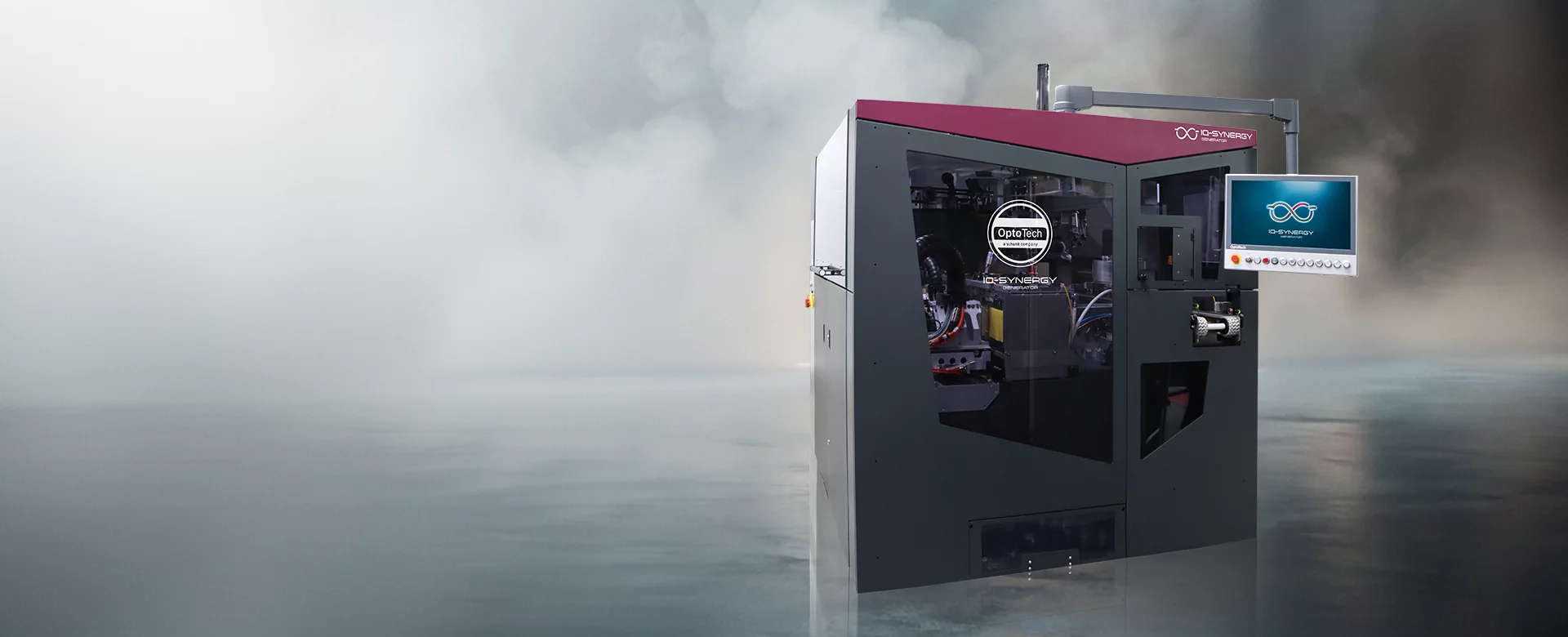

IQ-Synergy Generator

The IQ-Synergy Generator from OptoTech boosts your productivity while making operations smoother and more efficient than ever. Experience faster lens production, lower costs, and intuitive, smart controls - all in one groundbreaking machine.

Spectacle optics

Generating

Automation

Plastic

Contact request

Highlights

New process philosophy with decoupled process steps
Highest throughput in the industry
Autocalibration for an hassle-free setup of the machine
Best service accessibility

Options

Sophisticated Coolant Management System
Condition Monitoring
Remote Diagnostics
Advanjed Coolant Jet Milling Toll

	IQ-Synergy Generator
Application	Digital Surfacing Machine
Lens Diameter	52 mm - 85 mm
Working Range Radius cc	Milling and Turning -15 dpt.
Working Range Radius cx	Milling and Turning -15 dpt.
Lens Material	All organic Materials
Air Pressure Requirement	6 bar
Power Requirement (others on request)	8 - 10 kVA / 400 V / 50 Hz
Dimensions	Width: 1800 mm, Height: 1970 mm, Depth: 2300 mm
Weight (approx.)	3700 kg
Disclaimer	All data are subject to change without notice. Please verify details with OptoTech.
